Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut
Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut
Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut
Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut
Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut
Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut
Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut
Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut
Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut
Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut
Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut
Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut
Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut

Desview S24F 24'' UHD resolution 3840*2160 4K HDMI 4*3G-SDI input and output quad view broadcast monitor build in 3D-Lut

Model NO.
S24F
Delivery:
EXW
Minimum order quantity:
1
Country of Origin:
shenzhen
Quantity:

​​​​Desview S24F 24"4K HDMI input, 4ch 3G-SDI Quad-View Broadcast Monitor, 3840x2160 resolution


Product Features
• 23.8 inch 4K display panel
• UHD resolution 3840x2160
• HDR function(PQ)
• 2*HDMI input
• 4x 3G-SDI input,4x 3G-SDI output
• 1000:1 contrast ratio
• 178 degree viewing angle
• 400cd/m2 brightness
• PIP/PBP capable
• Battery information display
• Professional color calibration
• Build in 3D-LUT(SMPTE/EBU/REC709/DCI-P3)
• Gamma selection(1.8/2.0/2.2/2.4)
• Video assist functions
Technical Parameters:
Model:S24F
Description:24 Inch 4K 4*3G-SDI director monitor
Case color:Black
Display type:Ratio of 16: 9
Display area:382(W) ×214(H)mm
Resolution:3840*2160
Response time:10/15(TPY)(Tr/TD)
Display menu (OSD) / push-button control
Brightness:400CD/M2
Ratio:1000:1
View angel:L/R 178°(89°/89°),U/D 178°(89°/89°)
LED Back light life: 50,000 hours
Input signal: 2*HDMI/4*3G-SDI
Output:4*3G-SDI
Audio output: R.L two-channel output,3.5mm stereo headphone jack
Power: AC Built: 110V-265V AC, 50-60 Hz / DC 12V 2A
Power: ≤26W TPY
Temperature range: -10 ℃ -60 ℃ Operating Storage: -20 ℃ -80 ℃
Relative humidity: not condense the state, Humidity 10% -90% Storage humidity 5% -90%
Warranty: One year warranty and lifetime free maintenance.
Certifications:FCC, CE, ROHS
Accessories:

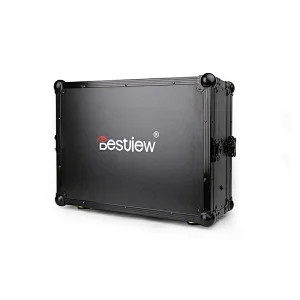

1.Suns-hood
2.HDMI cables
3.Wipe cloth
4.Warranty card
6. Standard Operating Instructions (available in English)
