Desview SP17-HDR 17.3" 4K UHD Multi-View Quad-Split Portable Broadcast Director Monitor

Model NO.
SP17-HDR
Delivery:
EXW
Minimum order quantity:
1
Country of Origin:
ShenZhen
Quantity:

Desview 17.3"Portable UHD 4K HDMI Quad-Split Broadcast Director's Monitor



Overview

The SP17-HDR is designed for field or studio work such as ENG, broadcast studios, and post production environments.

It supports UHD 3840 x 2160 IPS HD video, and it has a contrast ratio of 1000:1, 10-bit color depth, 400 cd/m2 brightness, and Rec. 709 color calibration.

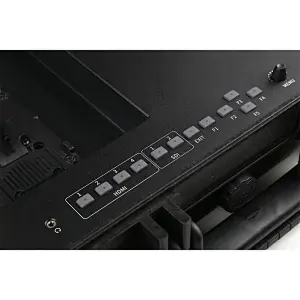

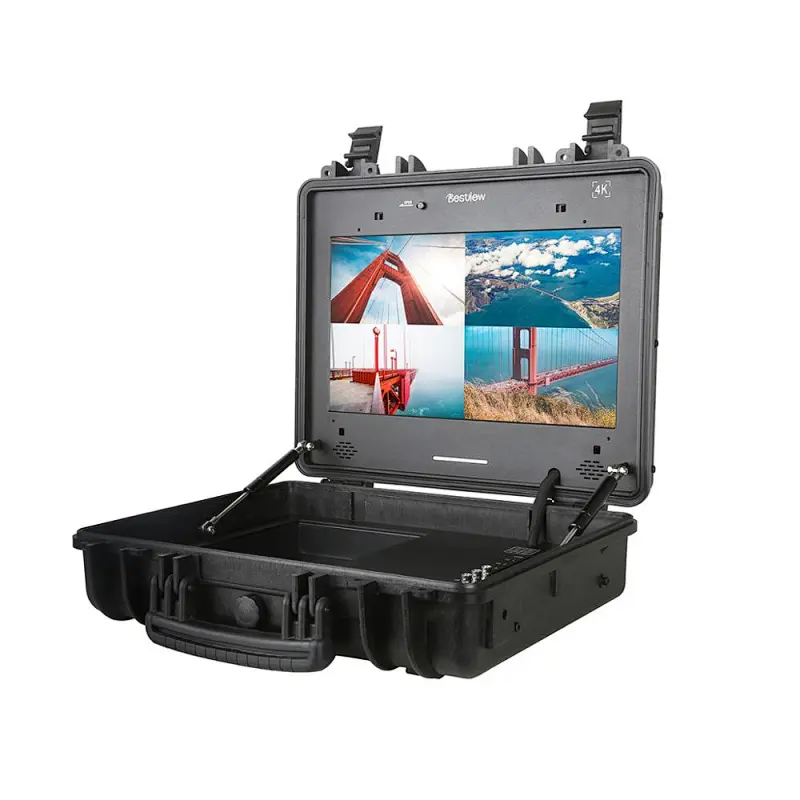

The monitor features four HDMI 2.0 inputs and can display up to four 4K sources in a quad PIP/PBP format simultaneously, and additional 3G-SDI and DVI/VGA sources can also be switched in. The monitor has a headphone jack and a two-channel audio line-level output. The monitor also includes an RJ45 tally port. Settings and controls are configured with the buttons in the base of the case.

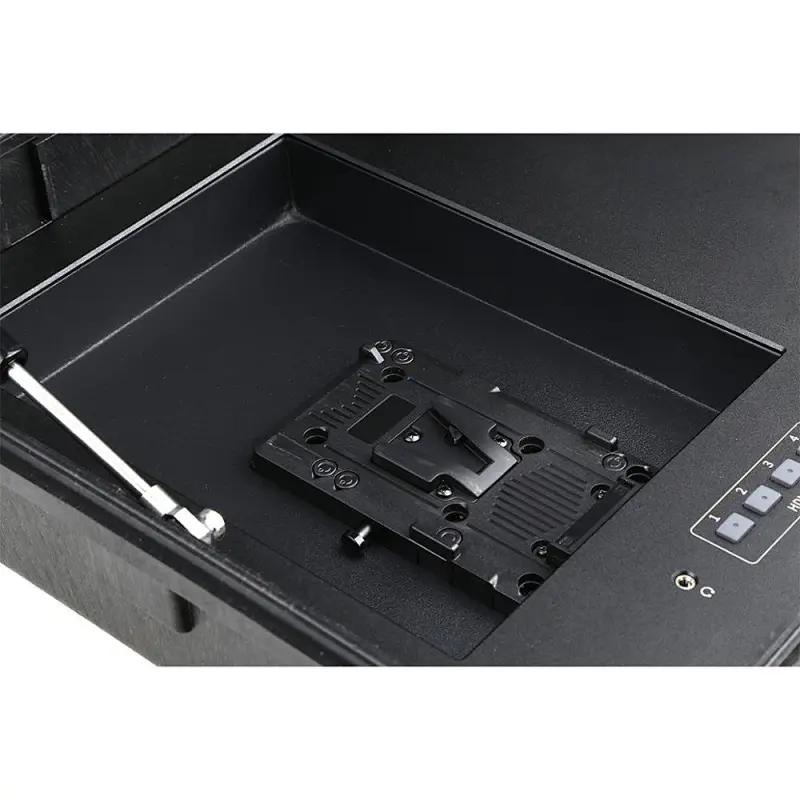

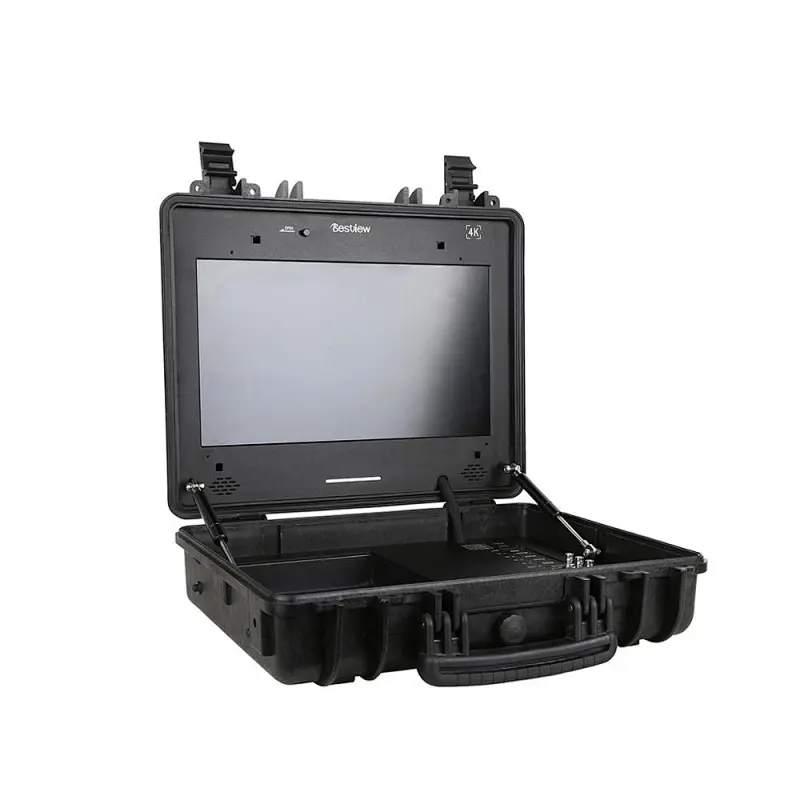

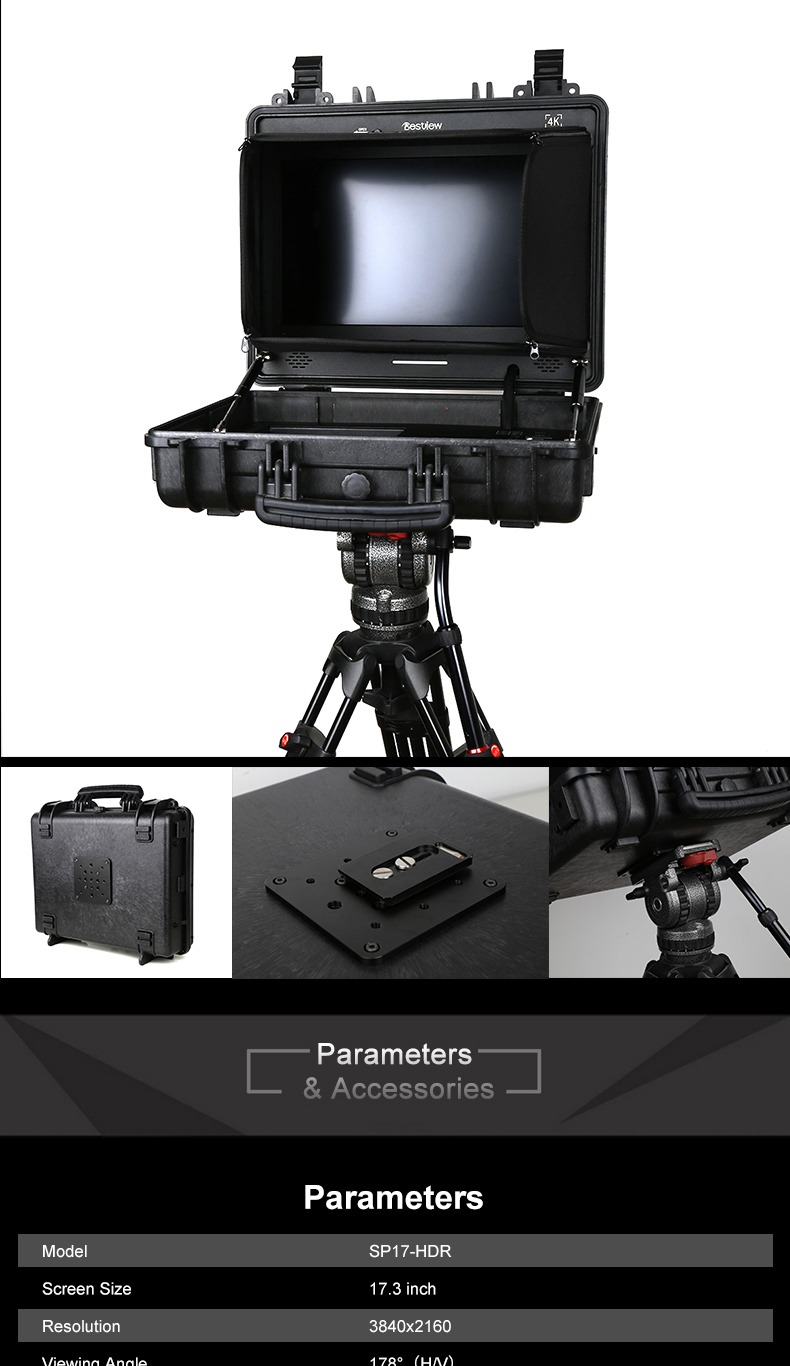

The portable monitor is installed in a rugged, military-grade plastic case and includes a V-mount battery plate when mains power is unavailable. The case also supports an optional Gold mount plate. The package also includes a sun hood, HDMI cable, SDI cable, XLR AC power adapter, and a cleaning cloth.

• 17.3 inch 4K display panel

• UHD resolution 3840*2160

• HDR function

• 4xHDMI input,1x HDMI output

• 2x 3G-SDI input,1x 3G-SDI output

• 1000:1 contrast ratio

• 178 degree viewing angle

• 400nit brightness

• PIP/PBP capable

• Battery information display

• Professional color calibration

• Build in 3D-LUT(SMPTE/EBU/REC709/DCI-P3)

• Gamma selection(1.8/2.0/2.2/2.4)

• Video assist functions

SP17-HDR_01.jpgSP17-HDR_02.jpgSP17-HDR_03.jpgSP17-HDR_04.jpgSP17-HDR_05.jpgSP17-HDR_06.jpgSP17-HDR_07.jpgSP17-HDR_08.jpgSP17-HDR_09.jpgSP17-HDR_10.jpgSP17-HDR_11.jpgSP17-HDR_12.jpg
