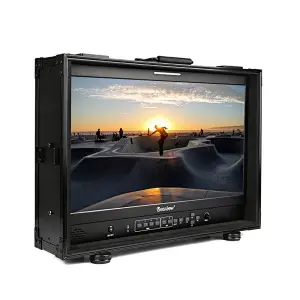

Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR
Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR
Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR
Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR
Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR
Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR
Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR
Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR
Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR
Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR
Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR
Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR
Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR

Desview S21 21.5 Inch 1920X1080 4K HDMI SDI Broadcast Director Monitor with HDR

Model NO.
S21
Delivery:
EXW
Country of Origin:
ShenZhen
Quantity:

Desview S21 Full HD Desktop Broadcast Monitor with HDR function build in 3D-Lut


Product Features

- 21.5"1920x1080 FHD Display Panel

- Support HDR Display(ST2084)

- Built in LUT:EBU,SMPTE_C,Rec.709,DCI-P3

- Support 4x HDMI input and 1x HDMI output

- Support 2x 3G-SDI input and 1x 3G-SDI output

- Adjustable Color Temperature and Customize RGB Value

- Gamma Selection:2.2,2.4,2.6

- Multi-View Mode:1P,2P_LR,2P_TB,2P_PIP,4P

- Battery Information Display

Software functions

Color Space

HDR

Gamma

Color Temperature

Aspect Ratio

Scan Mode

Pixel to Pixel

U/D Rotation

Freeze

Display Mode

Display Swap

Technical Parameters:

Model:S21

Description:21 Inch full HD director monitor

Case color:Black

Display type:Ratio of 16: 9

Display area:479.8 × 271.3 mm (H×V)

Resolution:1920*1080

Response time:10/15(TPY)(Tr/TD)

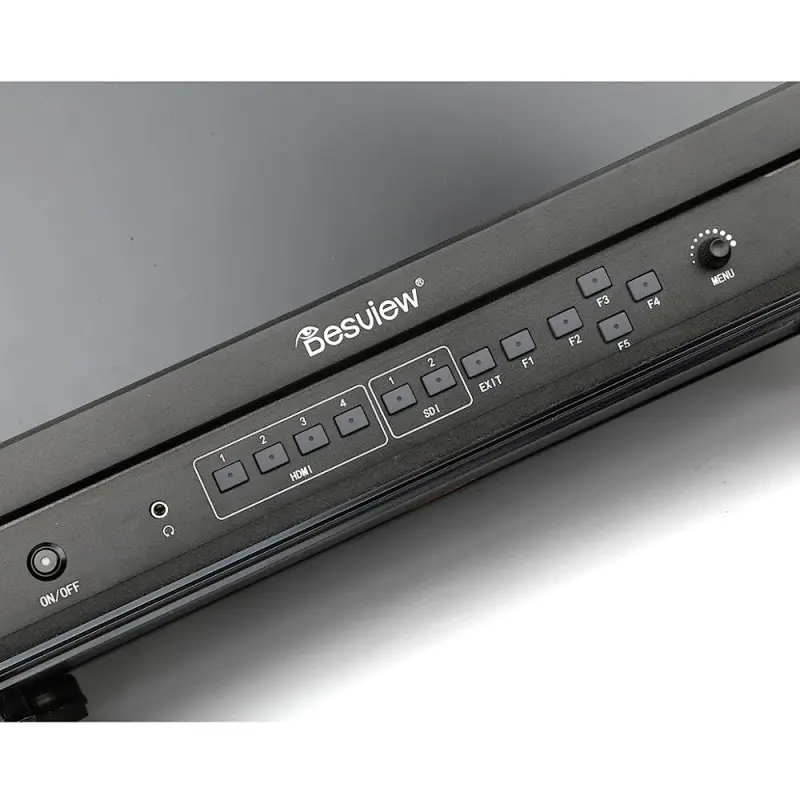

Display menu (OSD) / push-button control

Brightness:400CD/M2

Ratio:1000:1

View angel:L/R 178°(89°/89°),U/D 178°(89°/89°)

LED Back light life: 50,000 hours

Input signal: 4*HDMI/2*3G-SDI

Output:1*HDMI/1*3G-SDI

Audio output: R.L two-channel output,3.5mm stereo headphone jack

Power: AC Built: 110V-265V AC, 50-60 Hz / DC 12V 2A

Power: ≤26W TPY

Temperature range: -10 ℃ -60 ℃ Operating Storage: -20 ℃ -80 ℃

Relative humidity: not condense the state, Humidity 10% -90% Storage humidity 5% -90%

Warranty: One year warranty and lifetime free maintenance.

Certifications:FCC, CE, ROHS

Accessories:

1.Suns-hood

2.HDMI cables

3.Wipe cloth

4.Warranty card

6. Standard Operating Instructions (available in English)
