Desview S17-HDR 17.3 inch UHD 4K HDMI Quad-split desktop broadcast monitor for director build in 3D-LUT


Product Features

• 17.3 inch 4K display panel

• UHD resolution 3840x2160

• HDR function(PQ)

• 4xHDMI input,1x HDMI output

• 2x 3G-SDI input,1x 3G-SDI output

• 1000:1 contrast ratio

• 178 degree viewing angle

• 400cd/m2 brightness

• PIP/PBP capable

• Battery information display

• Professional color calibration

• Build in 3D-LUT(SMPTE/EBU/REC709/DCI-P3)

• Gamma selection(1.8/2.0/2.2/2.4)

• Video assist functions

Technical Parameters:

Model:S17-HDR

Description:17 Inch 4K 4*HDMI director monitor

Case color:Black

Display type:Ratio of 16: 9

Display area:382(W) ×214(H)mm

Resolution:3840*2160

Response time:10/15(TPY)(Tr/TD)

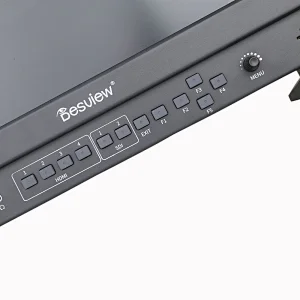

Display menu (OSD) / push-button control

Brightness:400CD/M2

Ratio:1000:1

View angel:L/R 178°(89°/89°),U/D 178°(89°/89°)

LED Back light life: 50,000 hours

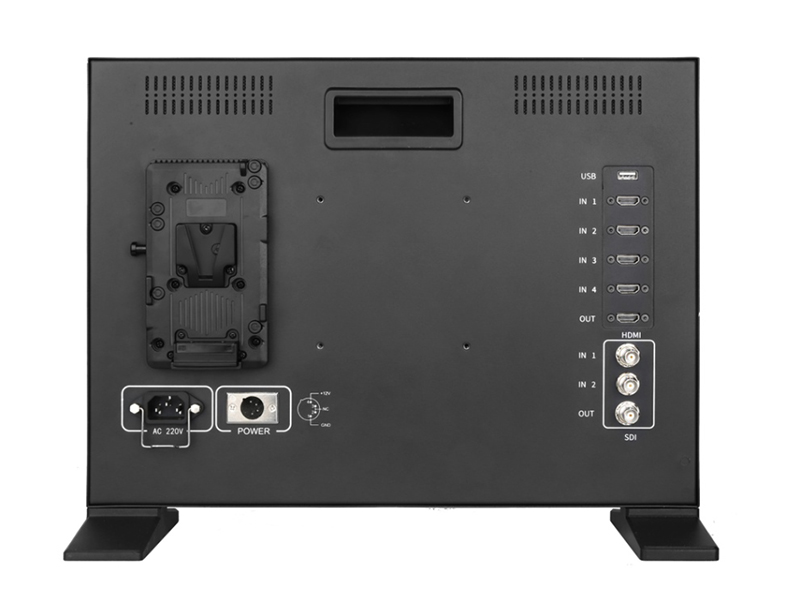

Input signal: 4*HDMI/1*3G-SDI

Output:1*HDMI/1*3G-SDI

Audio output: R.L two-channel output,3.5mm stereo headphone jack

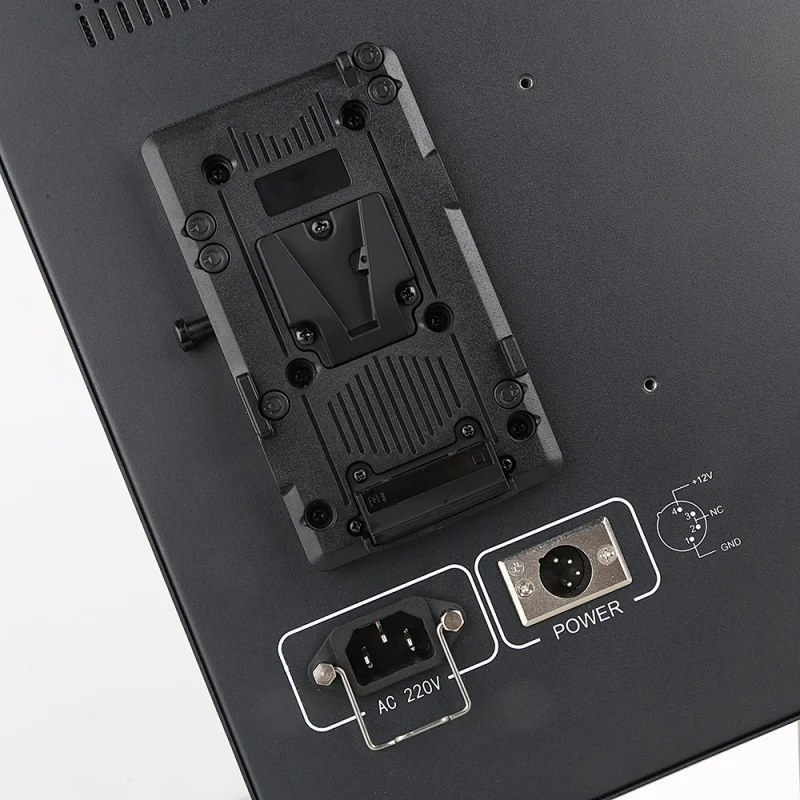

Power: AC Built: 110V-265V AC, 50-60 Hz / DC 12V 2A

Power: ≤26W TPY

Temperature range: -10 ℃ -60 ℃ Operating Storage: -20 ℃ -80 ℃

Relative humidity: not condense the state, Humidity 10% -90% Storage humidity 5% -90%

Warranty: One year warranty and lifetime free maintenance.

Certifications:FCC, CE, ROHS

Accessories:

1.Suns-hood

2.HDMI cables

3.Wipe cloth

4.Warranty card

6. Standard Operating Instructions (available in English)
